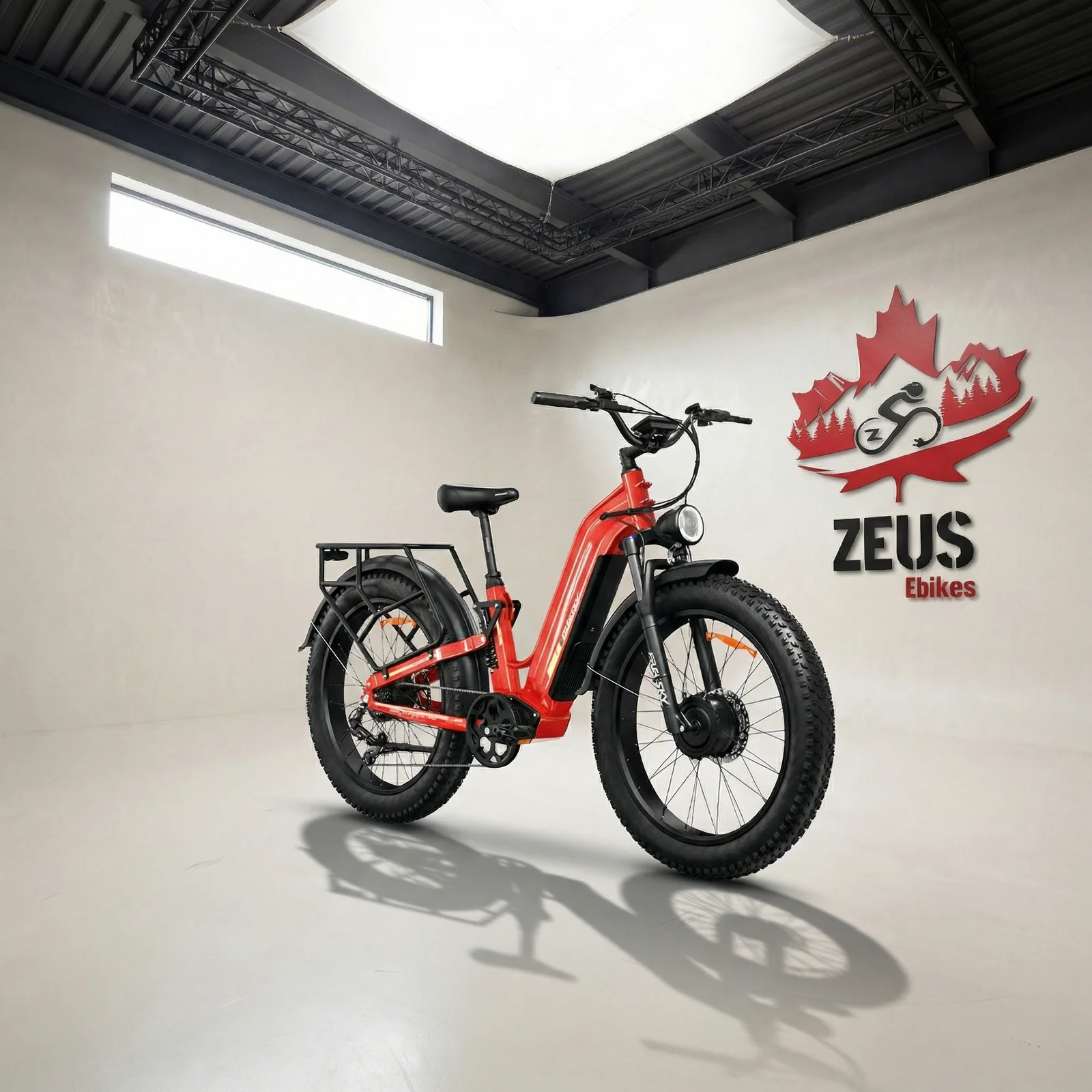

Freesky Ranger Air M-540

4,000W AWD in a Step-Thru Frame — Nothing Else in the Store Does This

Every other dual-motor AWD fat-tire eBike in our catalogue requires you to swing a leg over a high crossbar. The Freesky Ranger Air M-540 does not. Two 2,000W hub motors push 4,000W of peak all-wheel-drive power and 210 N·m of combined torque through 26″ × 4″ fat tires — and you step through an 18″ opening to ride it. That is a combination that exists nowhere else on our floor. Riders with hip replacements, bad knees, limited flexibility, or anyone over 60 who refuses to give up AWD traction just got their bike.

The spec sheet backs it up: 48V 25Ah battery (1,200 Wh) for 96–153 km on a single motor or 64–97 km running full AWD. Full suspension front and rear. 4-piston hydraulic brakes with 180mm rotors — the same caliper count as the Cheetah MT-380. NFC-enabled colour LCD that locks the entire electrical system until you tap the card. 800-lumen headlight. UL2849 + UL2271 dual safety certification, both TÜV verified. And a 400 lb payload that handles a 280 lb rider plus cargo without the frame or motors caring.

Key Features

• Dual 2,000W Hub Motors — 4,000W Peak — 210 N·m Combined — AWD — One motor per wheel. When the rear breaks loose on gravel or wet grass, the front pulls you through. 210 N·m of combined torque handles sustained 10%+ grades that stall single-motor bikes outright. Top speed: 34 mph (54 km/h) on full PAS. The DR-208 display defaults to a 32 km/h (20 mph) limit every time you power on, and a long press releases it. You can run single-motor mode to conserve battery on paved surfaces where AWD is unnecessary.
• 48V 25Ah Battery — 1,200 Wh — UL2271 — Freesky claims 60–105 miles on a single motor and 40–60 miles on AWD; our own watt-hour maths puts realistic Canadian mixed riding at 96–153 km single-motor and 64–97 km on AWD. In Canadian winter below −10°C, lithium-ion cells lose 20–40% capacity — that still yields 38–58 km on dual motor or 58–92 km on single. UL2271 certification covers thermal runaway, impact, and overcharge testing. Charges in 6–8 hours with the included 3A charger.
• 18″ Step-Thru Frame — 6061 Aluminium — The reason this bike exists. An 18″ clearance means you step through, sit, ride. No crossbar to clear. No wrestling 95 lbs over your leg. Aircraft-grade 6061 aluminium maintains the frame stiffness required for dual-motor torque loads. Fits 5’3″–6’8″ (160–203 cm). See the full Step-Thru collection →
• Full Suspension — Front Fork + Rear Shock — The front fork absorbs roots, rocks, and the pothole craters that Canadian freeze-thaw cycles leave behind every April. The rear shock handles sustained trail chatter. Combined with 4″ fat tires, the system keeps a 95 lb machine comfortable for hours on rough terrain. Freesky does not publish travel specs — in practice, the suspension handles gravel trails, packed earth, and frost-heaved pavement without complaint.
• 4-Piston Hydraulic Disc Brakes — 180mm Rotors — Same caliper count as our Freesky Cheetah MT-380. Four pistons generate substantially more clamping force than the two-piston units standard on most eBikes. At 95 lbs of bike, 400 lbs of payload, and 34 mph top speed, this is the minimum appropriate braking spec. Consistent feel in rain, snow, and mud without cable stretch degradation.
• 26″ × 4.0″ Fat Tires — Four inches of contact width floats over sand, snow, mud, and loose gravel. The 26″ wheel diameter rolls over obstacles more smoothly than 20″ fat-tire bikes and gives the Ranger Air a taller, more stable ride height. See our fat tire eBike guide →
• Colour LCD Display with NFC Lock/Start — Tap the included NFC card or a programmed phone to unlock the electrical system. Without authentication, motors and display stay locked — the bike becomes a 95 lb paperweight to anyone without the card. The display shows speed, battery, PAS mode, trip data, and headlight status. NFC anti-theft at this level is typically a premium-tier feature.
• 800-Lumen LED Headlight — Most eBike headlights run 200–400 lumens — enough to be visible, not enough to illuminate trail ahead of you at 30+ km/h. 800 lumens throws a usable cone of light for genuine after-dark riding.
• Shimano 7-Speed — KMC Chain — Seven mechanical gears layer on top of five PAS levels. Low gear for comfortable pedalling on climbs; high gear for efficient cruising when you want exercise. KMC chain is globally serviceable at any bike shop.
• 400 lb Payload — Highest payload rating in the step-thru category. A 280 lb rider still has 120 lbs of cargo margin. AWD distributes drive force across both wheels, eliminating the rear-wheel spin that single-motor bikes suffer under heavy loads on loose terrain. See our heavy rider guide →
• UL2849 + UL2271 — TÜV Verified — UL2849 certifies the complete eBike system (electrical, mechanical, functional). UL2271 certifies the battery (thermal runaway, impact, overcharge). Both verified by TÜV, an independent testing body. Dual UL certification is increasingly required by Canadian insurers and retailers.
• Rear Rack — Included — Factory-installed rear rack for panniers, bungee cargo, or a rear basket. Not an aftermarket add-on — it ships on the bike.

Everything Included

Ships partially assembled: pedals, seat post, handlebars and front wheel are yours to fit. Two adults recommended for unboxing — the bike alone is 95 lbs before packaging.

• Freesky Ranger Air M-540 eBike — Black, Blue, Grey, Green, or Red
• 48V 25Ah (1,200 Wh) lithium-ion battery — UL2271
• 3A smart charger
• Colour LCD display with NFC (pre-installed)
• NFC card for lock/start
• 800-lumen LED headlight (pre-installed)
• Rear LED tail light (pre-installed)
• Rear rack (pre-installed)
• Heavy-duty adjustable aluminium kickstand (pre-installed)
• Pedals
• Assembly tool kit
• Owner’s manual

No hidden required purchases. Free Canada-wide shipping — Zeus coordinates delivery to your door.

The Honest Take — What We’d Change

The Ranger Air M-540 is the only step-thru AWD fat-tire eBike we carry. That makes it irreplaceable for a specific rider. It also means these trade-offs matter more, because there is no alternative in the catalogue if they are deal-breakers:

• 95 lbs contradicts the step-thru promise. Riders choose step-thru frames because they want easy handling. But the Ranger Air is heavier than most step-over AWD bikes in the store. You step through easily — then manoeuvre 95 lbs at walking speed, load it into a truck, or push it up a driveway. If you chose step-thru for ease of handling beyond just mounting, this weight will surprise you. Ground-level storage is mandatory. A loading ramp is not optional. If weight matters more than AWD, the lighter single-motor step-thru options in our Step-Thru collection weigh 35–55 lbs.
• Cadence sensor, not torque sensor. The motor responds to whether you pedal, not how hard. Assist is binary: on when rotating, off when stopped. This means no proportional, natural-feeling pedal response. For gravel trails and off-road AWD use, cadence sensing is adequate — you are managing terrain, not simulating road-bike finesse. But riders migrating from torque-sensor bikes (Velotric, Himiway D5 Pro) will feel the difference immediately. If natural pedal feel is a priority, the Velotric Nomad 2X offers SensorSwap with both torque and cadence modes — though it sacrifices AWD to do it.
• 7-speed Shimano is undergunned for this bike. A 4,000W AWD machine with a 34 mph top speed deserves 8- or 9-speed gearing. The wider cassette spread would better match the bike’s terrain range and speed envelope. The 7-speed works fine — but the Eunorau Defender-S runs 9-speed Shimano Altus at a similar price point, which is objectively better matched. Freesky chose to invest in the NFC display and 4-piston brakes instead. Reasonable trade-off, but the gearing is where you feel it.
• Not street-legal in Canada. 4,000W peak exceeds the federal 500W limit for power-assisted bicycles. This bike is sold for off-road trails, private property, and routes that permit motorised vehicles. No public roads, no bike lanes, no pathways. If you need dual-motor AWD that you can also ride on the street, that option does not currently exist in our catalogue — or anyone else’s — because AWD output inherently exceeds the 500W street-legal ceiling.

Those trade-offs acknowledged: a step-thru frame with genuine AWD, 1,200 Wh, full suspension, 4-piston brakes, NFC security, UL dual certification, and 400 lb payload does not exist anywhere else in our store. The Ranger Air M-540 is the only answer to a question a lot of riders are asking.

Full Specifications

Who Is the Ranger Air M-540 For?

• Riders with mobility constraints who need real power — Hip replacement recovery. Arthritic knees. Reduced flexibility after 60. A back that does not bend the way it used to. These are not reasons to accept a 350W step-thru cruiser — they are reasons to need a 4,000W AWD machine with a frame you can actually mount. The 18″ step-thru and throttle-only mode mean you never have to pedal if you cannot.
• Heavy riders (250+ lbs) — 400 lb payload. AWD traction prevents the rear-wheel spin that single-motor bikes suffer under heavy loads on gravel and grass. A 280 lb rider still has 120 lbs of cargo margin. See our heavy rider guide →
• Canadian winter riders — AWD + 4″ fat tires + full suspension is the correct configuration for November–March riding. The front motor pulls through slush and packed snow where rear-only bikes lose grip and fishtail. Even with 20–40% winter battery loss, 38–92 km of cold-weather range outlasts a single trip for most riders. See our winter guide →
• Returning riders and first-time eBike buyers over 50 — The step-thru frame, upright geometry, comfortable suspension, and thumb throttle combine to make this bike approachable for people who have not ridden in decades. You do not need cycling fitness to ride this bike. The motor does the work. The 5-level PAS lets you choose how much you contribute.
• Property and farm use — AWD traction, 400 lb payload, fat tires that handle dirt roads and grass fields, and a rear rack for gear. On large properties, acreages, and rural routes where you need a vehicle but not a truck, the Ranger Air replaces a UTV run for a fraction of the operating cost.
